447.475 MHz
KK7GKG QTH · Riverton, Utah
Online
Linked
Repeater Specifications
| Frequency | 447.475 MHz |
| Output Offset | −5 MHz (Input: 442.475 MHz) |
| PL Tone | 100.0 Hz |
| TX Power | 108 Watts |
| Repeater | Motorola Quantar |
| Controller | Link-Comm RLC-3 (6 Port) |
| Duplexer | Sinclair 4-Cavity Duplexer |
| Antenna | Diamond X510HDN |
| Location | KK7GKG QTH — Riverton, Salt Lake County |
| Status | Online |
Full System Equipment
- Motorola Quantar — Primary 447.475 Repeater
- Link-Comm RLC-3 — Repeater Controller (6 Ports)
- Kenwood TKR-840 — Link Radio
- Motorola XPR5550 — Link Radio
- Raspberry Pi — AllStarLink Node (Node 669210)
- 445.0875 DMR Repeater — Co-located at QTH (Below Quantar)
Equipment Photo

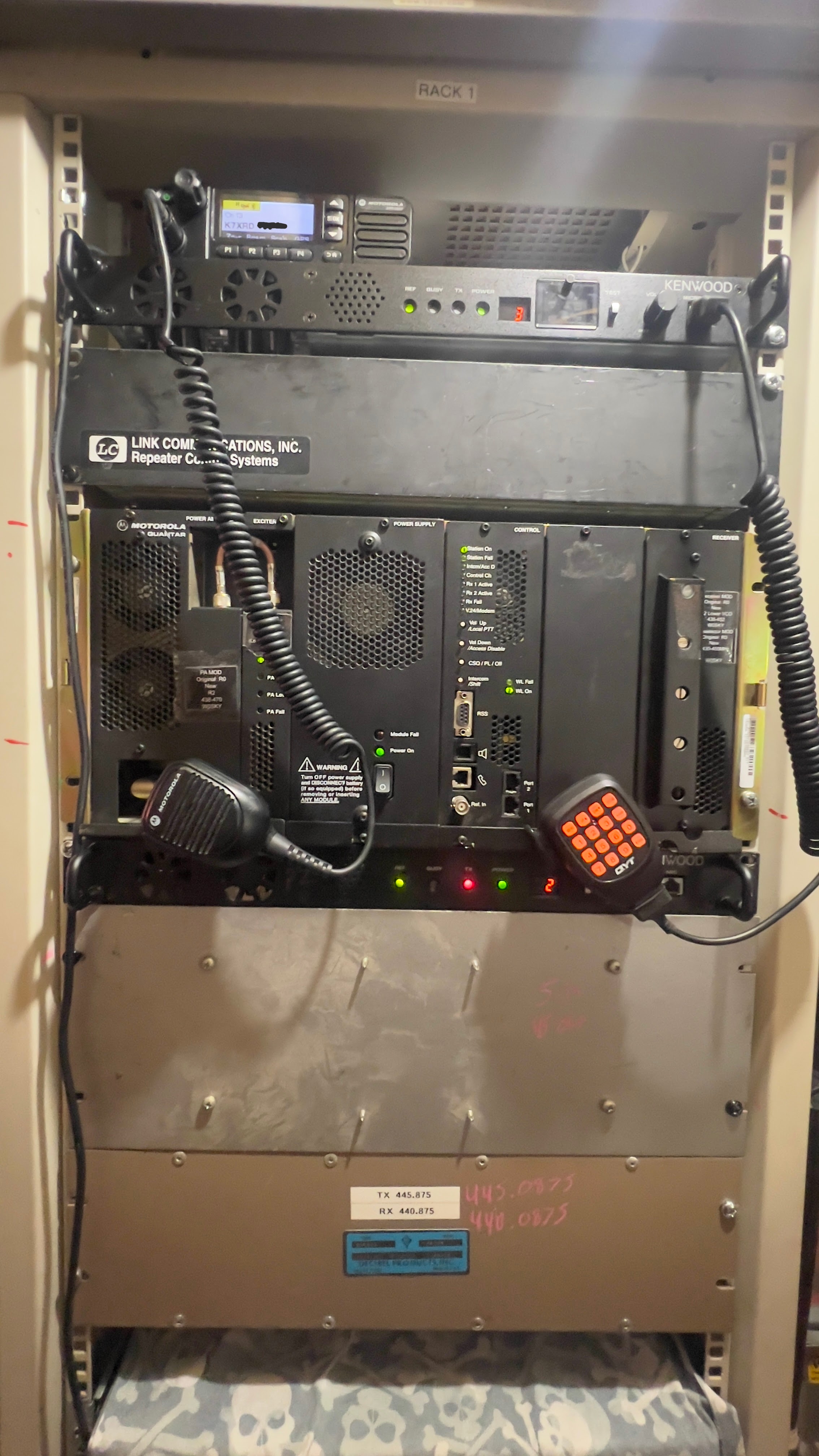

Repeater rack — 145.410, 445.0875, and 447.475 co-located at KK7GKG QTH
🖼️
Photo not available.
Check back when kk7gkg.com is live.
// Server Rack Layout
Rack Position Reference
Top → Bottom Layout
Top — L
Motorola XPR5550
Link radio - Ensign Peak
2nd
Kenwood TKR-840
Link radio — Butterfield Peak
3rd
Link-Comm RLC-3 Repeater Controller
6-port controller managing all site links
4th
Motorola Quantar
Primary 447.475 MHz FM repeater — 108W TX
5th
Kenwood TKR830
Primary 445.0875 MMDVM repeater — 5.2 W
6th
Motorola PA
445.0875 MMDVM Repeater Power AMP (5 In 45 Out)
7th
Decibel Duplexer
445.0875 Decibel Duplexer
// Monitoring & Links
System Monitoring
AllMon3 monitoring is available for this node. The AllStarLink node at this site is Node 600790. Contact KK7GKG before connecting external nodes.
AllStarLink
| Node | 600790 |
| Host | Raspberry Pi — on-site |
| Status | Online |
| Policy | Contact KK7GKG before connecting |
Co-located Repeaters at This Site
| 145.410 MHz | 145.410 VHF (Decommissioned) ↗ (offline) |
| 445.0875 MHz | 445.0875 DMR ↗ |
